  • Features of Structures and Applications

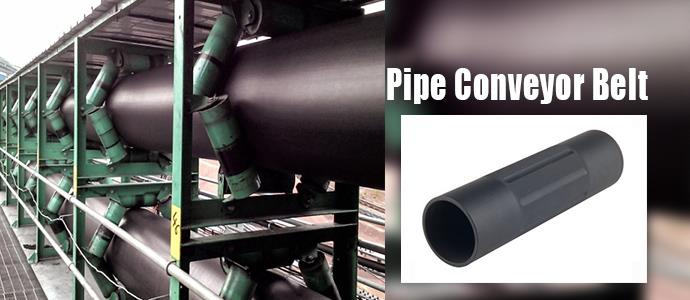

  • The carcass is single or multi-ply chemical fiber canvas or made of steel cord. The special manufacturing technique is applied to both edges of the belt,which generates proper lateral stiffness to form into the shape of the pipe with fatigue resistance. The belts can be widely used to convey materials in a sealed way in relative situations,such as cement industry,ports,electric power plants and fertilizer industry etc.

Technical Parameter

Classifications of Pipe Belt

According to different carcasses, the pipe belt can be

Divided as below:

Chemical fiber fabric pipe belt

Steel cord pipe belt

Yupheng company is one of the five manufacturers in China mainland can produce qualified Pipe Conveyor Belts

The framework stress body is single-layer or multi-layer chemical fiber canvas or steel cord. The two sides of the body adopt a special production process, so the finished belt has appropriate transverse rigidity, can easily form pipes without fatigue, and is used for occasions such as cement plants, wharves, power plants and chemical fertilizer plants where materials need to be conveyed in a closed way.

Product Category Subdivision
According to different framework stress bodies, the tubular conveyor belt can be divided into:
Chemical fiber fabric tubular belt
Steel cord tubular belt

Technical Data

Nominal
Pipe Dia(mm)

Width(mm)

Size of
 Verlap(mm)

Actual
Pipe Dia(mm)

Loading Area
at 70%(m2)

Capability at
 Speed 2m/s

Lump
Size(Max)

100

430

115

100.27

0.005

0.005

40

150

600

129

143.24

0.011

0.011

80

200

780

122

186.21

0.019

0.019

100

250

900

215

279.18

0.028

0.028

130

300

1050

158

286.48

0.045

0.045

150

350

1300

201

343.77

0.064

0.064

180

400

1600

244

401.07

0.088

0.088

200

450

1650

237

458.37

0.115

0.115

220

500

1900

330

507.5

0.145

0.145

230

600

2250

330

609

0.205

0.205

250
